Cranfield University Test Facility & Fuel Test Rig
The Scope
Working in partnership with a leading aero engine manufacturer, Cranfield University’s Engineering Department had a requirement to build a new Test Facility designed to house equipment to test fuel systems under specific flight conditions.
The Solution

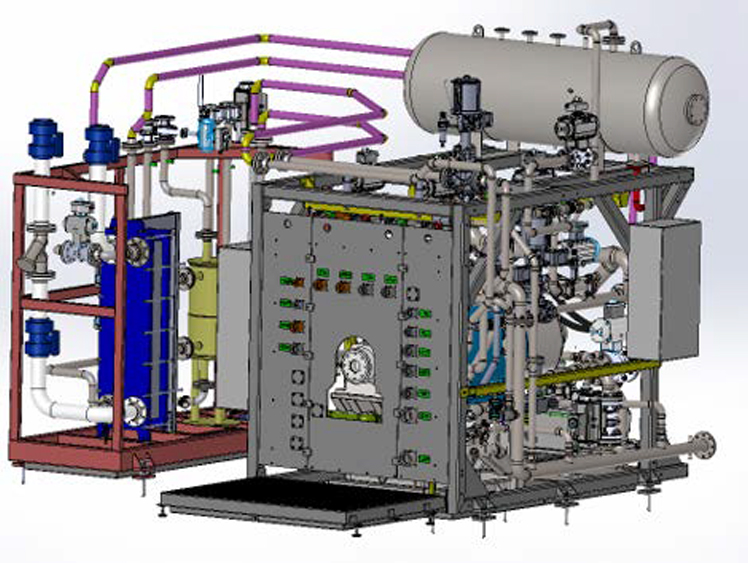

We delivered a fully ATEX compliant Hydro-mechanical Fuel Test Rig for the facility, which was controlled by a LabVIEW and Nitrogen based control & DAQ system. This was designed as an Engineering Test Rig, flexible enough to suit a variety of Fuel Pump Units with minimal set up. We also provided the control & safety system for the entire Test Facility through a Schneider Modicon PLC, coupled with a Schneider Preventa safety system. This communicated to all subsystems via Modbus TCP/IP and multiple closed loop controllers. We also took care of ATEX compliance for the facility, provided ATEX lighting and complete Detailed Inspections throughout.
The Outcome
This was a successfully delivered project, which resulted in a secure Test Facility, which could be operated unmanned from a remote-control room.
